ZIVELAB has provided electrochemical instruments design and developemt in hardware and software.,

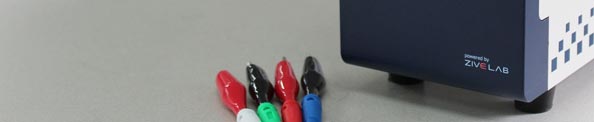

    ZIVE SP2, the outstanding potentiostat/galvanostat/FRA, is the best choice for the complete DC and impedance characterization of various electrochemical application.  System is designed under FPGA and DSP control with high speed capability with


      DAC control: Two set of high speed 16 bit DAC(50MHz) for offset & scanning & one set
                                   of 16bit DAC(1MHz) for auxiliary analog output control

      ADC reading: Two set of 16 bit 500kHz ADC for reading voltage/current and one set
                                   16bit 250kHz ADCs for auxiliary data input such as temperature,
                                   auxiliary voltage etc. It can provide high frequency EIS, fast pulse
                                   techniques with options and high speed sampling time.



    ZIVE SP2 is equipped with a frequency response analyzer(FRA) for system as standard and it provides high performance impedance measurements over the frequency range 10uHz to 1MHz.  ZRA(zero resistance ammeter) function can measure max 2 A in galvanic corrosion technique. ZIVE SP2 can be easily upgraded with  adding optional application software package without returning the system to the factory for upgrade.


     Versatility

    ZIVE SP2¡¯s system comes with additional three analog inputs (auxiliary voltage input) and 1 analog output, whereas 3 digital outputs and 2 digital inputs and one temperature input for K type thermocouple. It will help user expand the usage of instrument.

    For example,

      1.  User can measure the voltage between working electrode and counter electrode and between counter electrode and reference electrode adding to measurement between working electrode and reference electrode using 2 additional analog inputs(auxiliary voltage inputs).
      2. Using analog output, it can control rotating speed of rotator, MFC flow rate etc. by +/-10V full scale.

      3.  User can control on/off of max 3 devices by DO etc.



     Safety/Maintenance

      1.  When communication failure between PC and ZIVE SP2 occurs, running channel will continue the experiments and save the data into ZIVE memory up to 542,000 data point set. When the communication is recovered, ZIVE will transfer saved data to PC. User can transfer data set from ZIVE to PC anytime. This function will be highly efficient for long time experiment.


      2.  User can define safety condition setting by inputting his/her own safety levels for voltage, current, temperature etc. If the measurement value exceeds this setting value, the system will automatically stop to protect the system and cell.


      3.  If control value of voltage or current is different from measured value, the experiment will be stop automatically to protect the cell.


      4. Automatic calibration function is supplied for user calibration.  The system is controlled from a PC via USB or an Ethernet connection(Future function).



    Application

    ZIVE SP2 electrochemical workstation is ideal for fundamental research in electrochemistry, development and quality assurance of new sensors, corrosion/coatings, electrode material, membrane, conducting polymer, evaluation power device research such as battery materials, fuel cells, super capacitors and solar cells.

    Software (SmartManager)

    ZIVE SP2 electrochemical workstation use SmartManager software. You can get more detailed information via above link.



    Specification

Main system

PC communication

USB2.0 High Speed

Line voltage

100-240VAC, 50/60Hz, 1Amp

Power adapter

24V@3A

Size/weight

113X305.7X196mm(W*D*H) / 3.35kg

Max output power

24Watt

¡¡

¡¡

System

Cell cable

1meter shielded type (Standard)

¡¡

Working, reference, counter,

¡¡

working sense, Auxiliary V

Control

DSP with FPGA

DAC

2x16bit DAC(50MHz) for bias & scan
1X16bit DAC(1MHz) for analog output

Data acquisition

2x16bit ADCs(500kHz) for voltage, current

ADC

1x16bit ADCs(250kHz) for auxiliary voltage
and temperature reading

Calibration

Automatic

Filter

4ea (5Hz,1kHz,500kHz, 5MHz)

Scan rate

0 – 200V/sec
0-5000V/sec(fast scan)

Max. channel No.

32 Channels via USB connection

Internal Data Memory

542,000 points

LCD Display

DC & EIS mode automatically

¡¡

¡¡

Power amplifier(CE)

Power

24Watt (12V@2A)

Compliance voltage

±12V

Maximum current

±2A

Control speed selection

8ea

bandwidth

4MHz

Slew rate

15V/usec

¡¡

Potentiostat mode(voltage control)

- voltage control

Control voltage range

±10V, ±1V, ±100mV

Voltage resolution

16 bit per each range

Voltage accuracy

¡¾0.02% fs (gain x1)

Max. scan range

±10V vs. ref. E

- current measurement

Current ranges

11 ranges(auto/manual setting)

200pA ~ 2A

(200pA with gain)

Current resolution

16 bit;

60uA,6uA,600nA,60nA,6nA,600pA,

60pA,6pA, 600fA, 60fA,6fA

Current accuracy

±0.02% of range(gain x1) >200nA

¡¡

Galvanostat mode(current control)

- Current control

Control current range

Max. ±2A

± full scale depending on selected range

Current resolution

16 bit;

60uA,6uA,600nA,60nA,6nA,600pA,

60pA,6pA, 600fA, 60fA,6fA

Current accuracy

±0.02% of range(gain x1) >200nA fs

- Voltage measurement

Voltage ranges

10V,1V,100mV

Voltage resolution

16 bit; 0.3mV,30uV,3uV

Voltage accuracy

¡¾0.02% fs

Max input voltage

¡¾10V

Input impedance

2x1013¥Ø||4.5pF

Bandwidth

>22MHz

CMRR

>114db

¡¡

¡¡

EIS(Internal FRA) for system

Frequency range

10uHz ~ 2MHz

Frequency accuracy

0.01%

Frequency resolution

5000/decade

Amplitude

0.1mV ~ 5V rms (Potentiostatic)

0.1 ~ 70% f.s(Galvanostatic)

Mode

Static EIS:

Potentiostatic, galvanostatic, pseudo-galvanostatic, OCP

Dynamic EIS:

Potentiodynamic, Galvanodynamic

Fixed frequency Impedance:

Potentiostatic, Galvanostatic, potentiodynamic, galvanodynamic

Multisine EIS:

Potentiostatic, Galvanostatic

Intermittent PEIS/GEIS

¡¡

¡¡

Interfaces  for system¡¡

Auxiliary port

¡¡

 Digital output

3 (open collector)

 Digital input

2 (photo coupler)

 Auxiliary voltage inputs

3 analog Inputs: ±10V

¡¡

For measurement of WE vs. CE

¡¡

CE vs. RE or other signal

 Analog output

1 analog output: ¡¾10V

 For stirrer, MFC, RDE, etc.

 Misc.  port

¡¡

Sig generator output

1 analog output for FRA output or

 waveform generation output

Peripheral communication

I2C to control external devices

Temperature measurement

1 K-type thermocouple input

Zero Resistance Ammeter

2nA ~ 2A ranges

¡¡

Software

¡¡

Max steps per experiment

1000

Shutdown safety limits

Voltage, current, temperature etc

Max. sampling rate

2usec or 3usec depending on data point number

Max. sampling time

unlimited

Sampling condition

Time, dv/dt, dI/dt, temp etc.

¡¡

PC requirement

¡¡

Operating system

Windows 7/8/10(32bit/64bit OS)

PC specification(minimum)

Pentium4, RAM 1GB or higher

Display

1600x900 high color or higher

USB

High speed 2.0

¡¡

General¡¡

Dummy cell

One external dummy cell included

Thermocouple

K-type, 1.5 meter long(option)

Impedance analysis S/W

ZMAN¢â software

DC data analysis S/W

IVMAN¢â software package

Specifications & software subject to change without notice.      ZIVELAB
